About this model
Niawell 500 kW horizontal three-phase AC load bank for generator and UPS testing.
AC Load Bank 500 kW
Load Banks

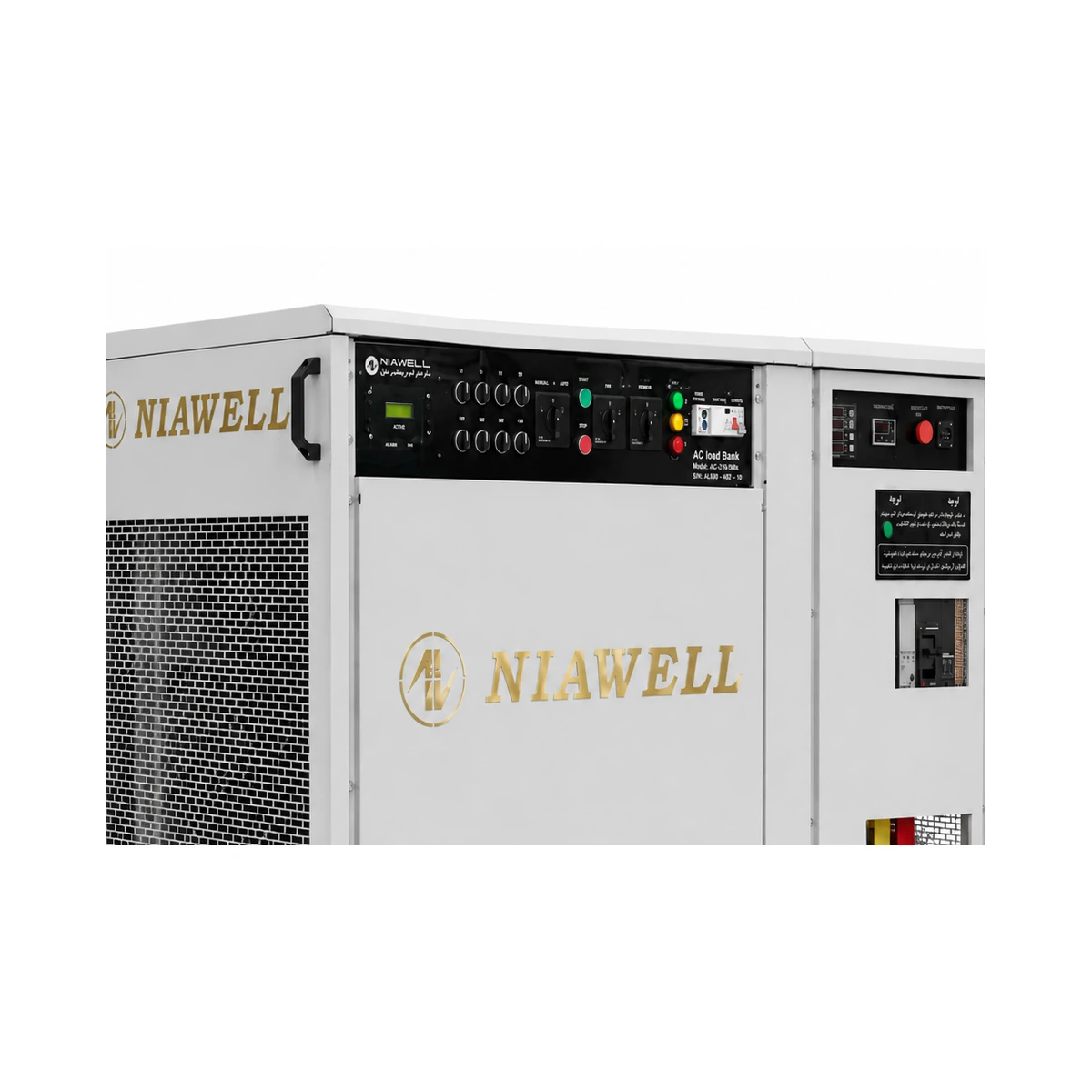

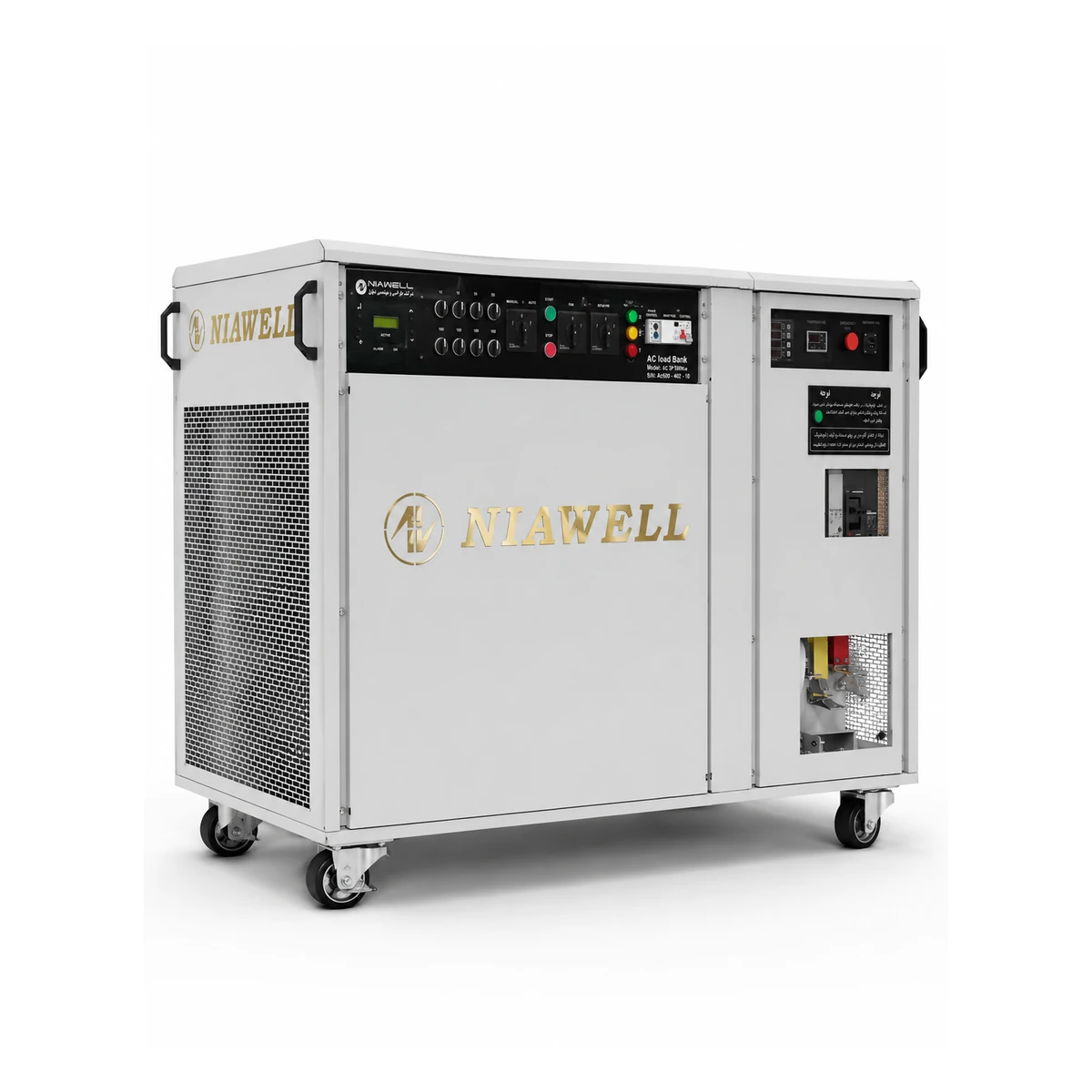

AC Load Bank 500 kW — Horizontal Cabinet
Product seriesAC Load Bank 500 kW
Exact modelAC 3P 500KW Horizontal
Rated power500 kW
Installation & mobilityHorizontal
Niawell 500 kW horizontal three-phase AC load bank for generator and UPS testing.
Choose the device model
Every option loads its own exact specifications.
Industrial engineering
Custom configurations
Engineering support
TECHNICAL DATA
Exact technical specifications
The data below comes directly from this exact model record and is never substituted with another power rating.
| Specification | AC 3P 500KW Horizontal 500 kW · Horizontal | AC 3Ph-500KW Vertical 500 kW · Vertical |
|---|---|---|
| Model | AC 3P 500 kW Horizontal | 3Ph-500KW |
| Product Type | Resistive AC Load Bank | — |
| Rated Power | 500 kW | — |
| Input | Three-phase AC | — |
| Installation | Horizontal mobile cabinet | — |
| Control Modes | Manual and automatic | — |
| Cooling | High-volume forced-air cooling | Air Force Cooling |
| Monitoring | Voltage, current, frequency, power and temperature | — |
| Protection | Main breaker, branch protection, over-temperature and fan supervision | — |
| Mobility | Industrial caster wheels and side handles | — |
| Applications | Generator, UPS and power-system load testing | — |
| Voltage Rating | — | 240/480 VAC 3 phase 50HZ |
| Power Rating | — | 200~500 KW |
| Auxiliary Power Supply | — | 220V 1 phase 50HZ |
| Load Steps | — | Automatic: with CSU control & regulation, Manual Control: |
| Voltage Rating - Load Step | — | 240/480V 3Phase 50HZ: 2, 5, 10, 25, 50, 100, 100, 100 KW |
| Safety and Protection | — | 1. Input main circuit breaker 800A 3Phase. 2. Fast fuse protection for each branch of Load. 3. Over heating by temperature sensor. 4. Fan fault protections by: a) Air flow detector, b) Fan current sense. In case of fan fault or over heating, the load will switch off. 5. Wrong voltage protection (adjustable). |
| Monitoring of | — | 1. Voltage, Current, Frequency, Total Power, Temperature. 2. Phase detection monitoring. |
| Mechanical Dimensions | — | 95*125*140 cm (W*D*H) |
| Weight | — | 300 KG |
| What it Can Test | — | AC Load Bank, Batteries & DC Power Supply (High Voltage) |
AC Load Bank 500 kW
AC 3P 500KW Horizontal
500 kW · Horizontal
- Model
- AC 3P 500 kW Horizontal
- Product Type
- Resistive AC Load Bank
- Rated Power
- 500 kW
- Input
- Three-phase AC
- Installation
- Horizontal mobile cabinet
- Control Modes
- Manual and automatic
- Cooling
- High-volume forced-air cooling
- Monitoring
- Voltage, current, frequency, power and temperature
- Protection
- Main breaker, branch protection, over-temperature and fan supervision
- Mobility
- Industrial caster wheels and side handles
- Applications
- Generator, UPS and power-system load testing
AC Load Bank 500 kW
AC 3Ph-500KW Vertical
500 kW · Vertical
- Model
- 3Ph-500KW
- Voltage Rating
- 240/480 VAC 3 phase 50HZ
- Power Rating
- 200~500 KW
- Auxiliary Power Supply
- 220V 1 phase 50HZ
- Cooling
- Air Force Cooling
- Load Steps
- Automatic: with CSU control & regulation, Manual Control:
- Voltage Rating - Load Step
- 240/480V 3Phase 50HZ: 2, 5, 10, 25, 50, 100, 100, 100 KW
- Voltage Rating - Load Step
- 160/240V 1Phase 50HZ: 2, 5, 10, 25, 50, 100, 100, 100 KW
- Voltage Rating - Load Step
- 240/480V 3Phase 50HZ: From 2 up to 400KW with 2KW tolerance
- Safety and Protection
- 1. Input main circuit breaker 800A 3Phase. 2. Fast fuse protection for each branch of Load. 3. Over heating by temperature sensor. 4. Fan fault protections by: a) Air flow detector, b) Fan current sense. In case of fan fault or over heating, the load will switch off. 5. Wrong voltage protection (adjustable).
- Monitoring of
- 1. Voltage, Current, Frequency, Total Power, Temperature. 2. Phase detection monitoring.
- Mechanical Dimensions
- 95*125*140 cm (W*D*H)
- Weight
- 300 KG
- What it Can Test
- AC Load Bank, Batteries & DC Power Supply (High Voltage)
