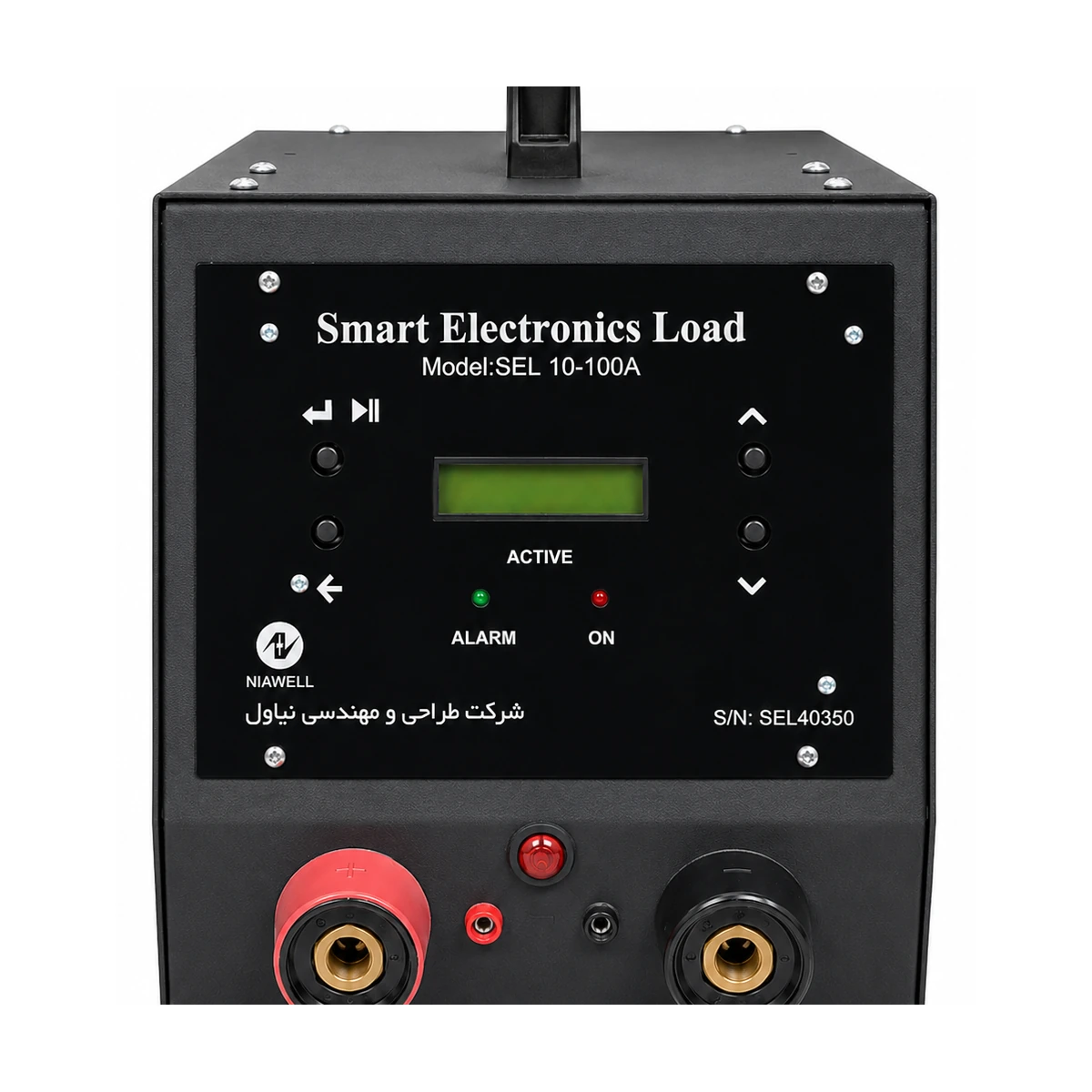

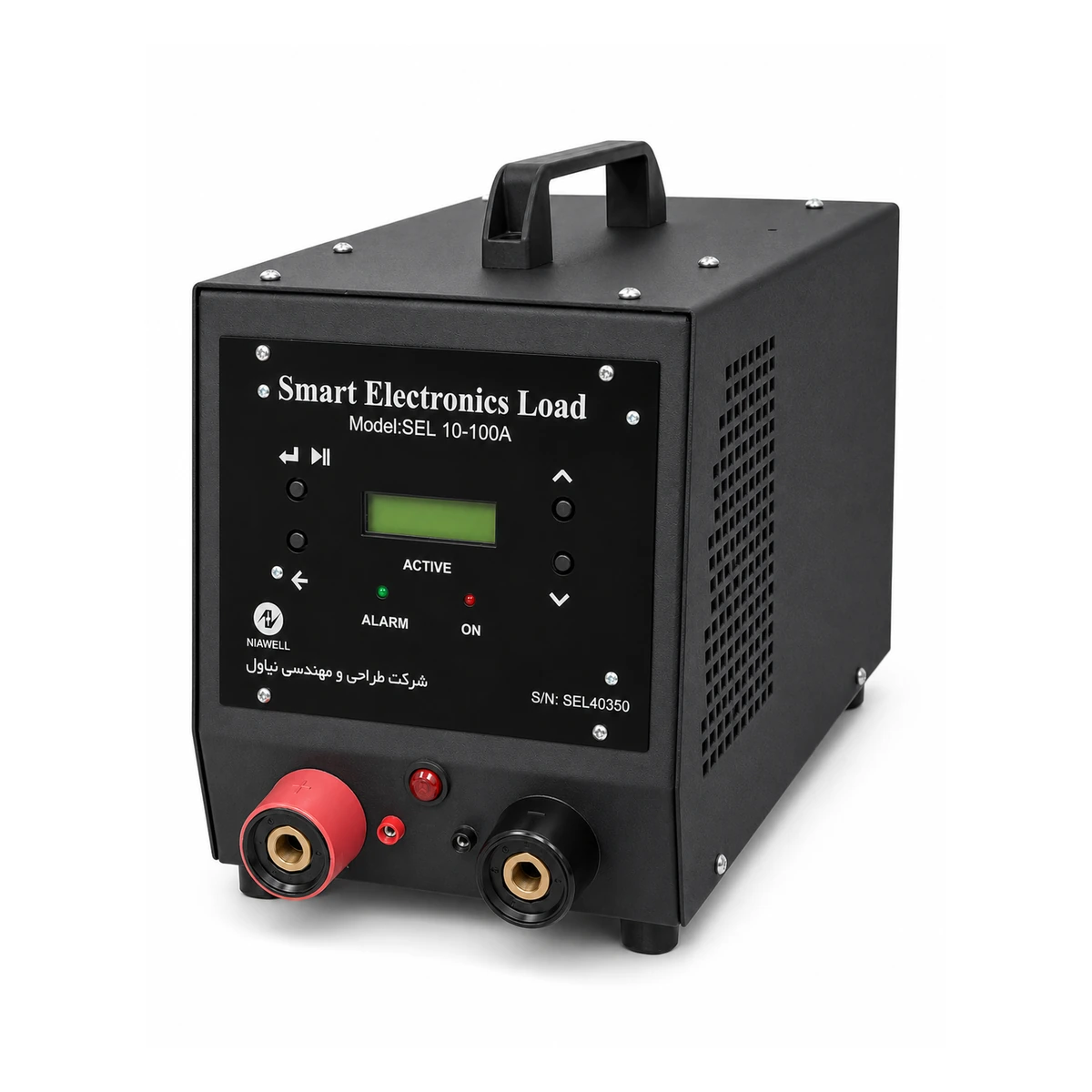

SEL 06-100A Smart Electronic Load / Battery Cell Discharger

Product seriesSEL Exact modelSEL 06-100A Rated power15 kW Installation & mobilityPortable

Niawell SEL 06-100A smart electronic load and battery cell discharger up to 100 A.

Device models

Portable SEL 220V-15KW 15 kW / 220 V Portable SEL 12V-160A 160 A / 12 V Portable SEL 110V-15KW 15 kW / 110 V Portable SEL 06-100A 06-100 A Portable SEL 48V-15KW 15 kW / 48 V
Industrial engineering Custom configurations Engineering support
Request a quotation Specifications
OVERVIEW

About this model

Niawell SEL 06-100A smart electronic load and battery cell discharger up to 100 A.
TECHNICAL DATA

Exact technical specifications

The data below comes directly from this exact model record and is never substituted with another power rating.

Select a model. Scroll the desktop comparison table horizontally to see all models.

Compare series modelsChoose a model above; mobile shows only the selected model.
Specification SEL 220V-15KW 15 kW / 220 V SEL 12V-160A 160 A / 12 V SEL 110V-15KW 15 kW / 110 V SEL 06-100A 06-100 A SEL 48V-15KW 15 kW / 48 V
Technical Specifications
Model SEL 220-15K SEL 12V-160A SEL 110-15K SEL 06-100 A SEL 48-15K
Voltage Rating 10~220V 1~12V 10~110V 1~6V 10~60V
Capacity 15KW 160A 15KW 15K 15KW
CoolingShared Vertical Air Force by Fan
Minimum Load Step 1A 1A 1A Constant Current 1A 1A
Control SystemShared Front control panel
Auxiliary Power System AC 220V, 50HZ, 6A for Fan and Internal Power Supply AC 220V, 50HZ, 6A for Fan and Internal Power Supply AC 220V, 50HZ, 6A for Fan and Internal Power Supply AC 220V, 50HZ, 6A For Fan and Internal Power Supply AC 220V, 50HZ, 6A for Fan and Internal Power Supply
Dimensions 25*37*58 (W*L*D) 25*37*58 (W*L*D) 25*37*58 (W*L*D) 20*48*60 (W*L*D) 25*37*58 (W*L*D)
Weight 15KG 15KG 15KG 8 KG 15KG
Power SwitchingShared Power IGBT & Mosfet
Ambient Parameters 0-50 °C For Indoor Use 0-50 °C For Indoor Use 0-50 °C For Indoor Use 0-50°C For Indoor USE 0-50 °C For Indoor Use
What it can test Batteries & DC Power Supply Batteries & DC Power Supply Batteries & DC Power Supply Batteries & DC Power Supply (Low Voltage) Batteries & DC Power Supply
Reverse Polarity Protection Yes Yes Yes — Yes
Mode Constant Current Constant Current Constant Current — Constant Current
SEL

SEL 06-100A

06-100 A

Model
SEL 06-100 A
Voltage Rating
1~6V
Capacity
15K
Cooling
Vertical Air Force by Fan
Minimum Load Step
Constant Current 1A
Control System
Front control panel
Auxiliary Power System
AC 220V, 50HZ, 6A For Fan and Internal Power Supply
Dimensions
20*48*60 (W*L*D)
Weight
8 KG
Power Switching
Power IGBT & Mosfet
Ambient Parameters
0-50°C For Indoor USE
What it can test
Batteries & DC Power Supply (Low Voltage)
