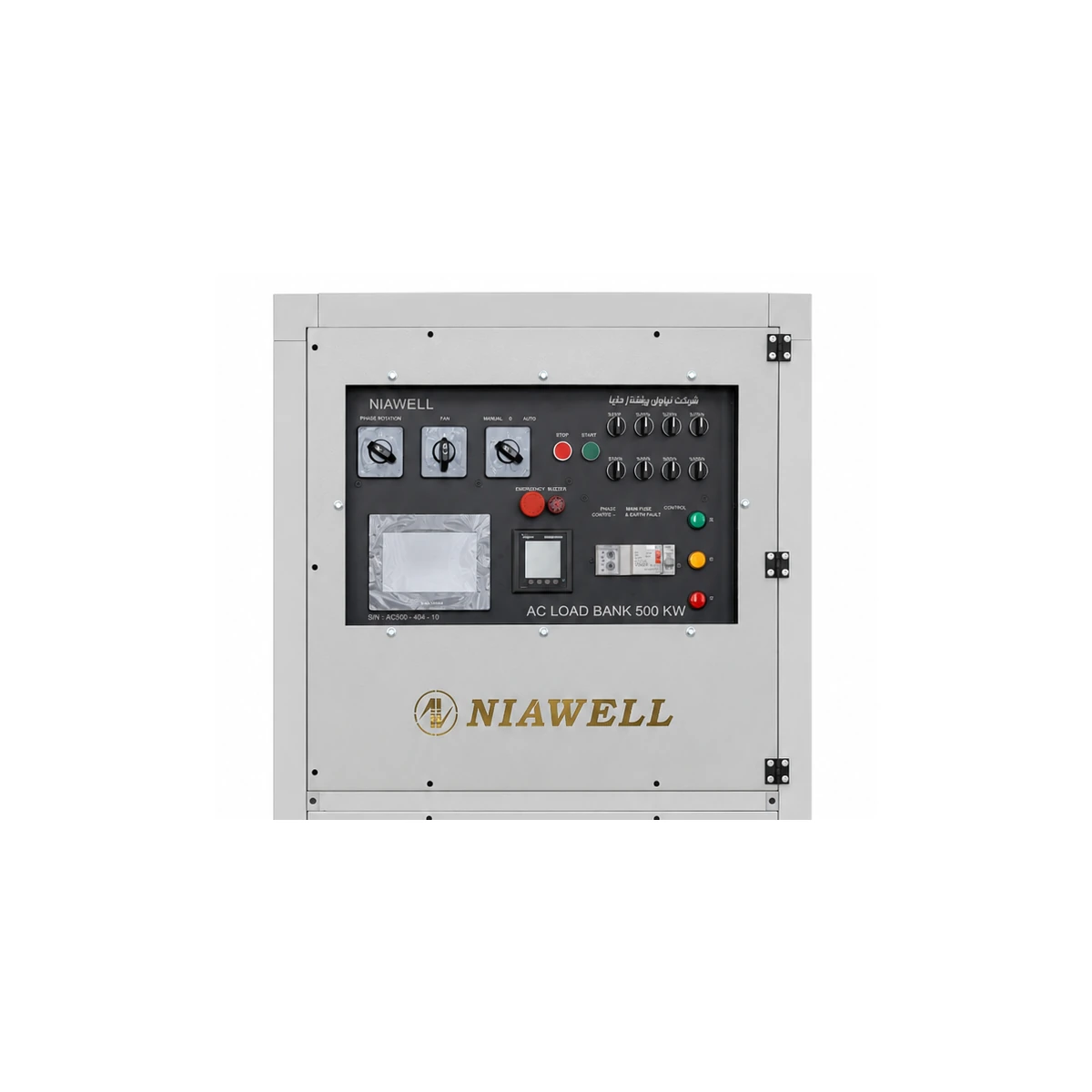

AC Load Bank 500 kW — Vertical Cabinet - front view AC Load Bank 500 kW
Load Banks

AC Load Bank 500 kW — Vertical Cabinet

Product seriesAC Load Bank 500 kW Exact modelAC 3Ph-500KW Vertical Rated power500 kW Installation & mobilityVertical

Niawell 500 kW vertical three-phase AC load bank for high-power generator and UPS load testing.

Choose the device model

Every option loads its own exact specifications.
Horizontal AC 3P 500KW Horizontal 500 kW · Horizontal Vertical AC 3Ph-500KW Vertical 500 kW · Vertical
Industrial engineering Custom configurations Engineering support
Product consultation View specifications
OVERVIEW

About this model

Niawell 500 kW vertical three-phase AC load bank for high-power generator and UPS load testing.
TECHNICAL DATA

Exact technical specifications

The data below comes directly from this exact model record and is never substituted with another power rating.

Specification AC 3P 500KW Horizontal 500 kW · Horizontal AC 3Ph-500KW Vertical 500 kW · Vertical
Model AC 3P 500 kW Horizontal 3Ph-500KW
Voltage Rating — 240/480 VAC 3 phase 50HZ
Power Rating — 200~500 KW
Auxiliary Power Supply — 220V 1 phase 50HZ
Cooling High-volume forced-air cooling Air Force Cooling
Load Steps — Automatic: with CSU control & regulation, Manual Control:
Voltage Rating - Load Step — 240/480V 3Phase 50HZ: 2, 5, 10, 25, 50, 100, 100, 100 KW
Safety and Protection — 1. Input main circuit breaker 800A 3Phase. 2. Fast fuse protection for each branch of Load. 3. Over heating by temperature sensor. 4. Fan fault protections by: a) Air flow detector, b) Fan current sense. In case of fan fault or over heating, the load will switch off. 5. Wrong voltage protection (adjustable).
Monitoring of — 1. Voltage, Current, Frequency, Total Power, Temperature. 2. Phase detection monitoring.
Mechanical Dimensions — 95*125*140 cm (W*D*H)
Weight — 300 KG
What it Can Test — AC Load Bank, Batteries & DC Power Supply (High Voltage)
Product Type Resistive AC Load Bank —
Rated Power 500 kW —
Input Three-phase AC —
Installation Horizontal mobile cabinet —
Control Modes Manual and automatic —
Monitoring Voltage, current, frequency, power and temperature —
Protection Main breaker, branch protection, over-temperature and fan supervision —
Mobility Industrial caster wheels and side handles —
Applications Generator, UPS and power-system load testing —
AC Load Bank 500 kW

AC 3Ph-500KW Vertical

500 kW · Vertical

Model
3Ph-500KW
Voltage Rating
240/480 VAC 3 phase 50HZ
Power Rating
200~500 KW
Auxiliary Power Supply
220V 1 phase 50HZ
Cooling
Air Force Cooling
Load Steps
Automatic: with CSU control & regulation, Manual Control:
Voltage Rating - Load Step
240/480V 3Phase 50HZ: 2, 5, 10, 25, 50, 100, 100, 100 KW
Voltage Rating - Load Step
160/240V 1Phase 50HZ: 2, 5, 10, 25, 50, 100, 100, 100 KW
Voltage Rating - Load Step
240/480V 3Phase 50HZ: From 2 up to 400KW with 2KW tolerance
Safety and Protection
1. Input main circuit breaker 800A 3Phase. 2. Fast fuse protection for each branch of Load. 3. Over heating by temperature sensor. 4. Fan fault protections by: a) Air flow detector, b) Fan current sense. In case of fan fault or over heating, the load will switch off. 5. Wrong voltage protection (adjustable).
Monitoring of
1. Voltage, Current, Frequency, Total Power, Temperature. 2. Phase detection monitoring.
Mechanical Dimensions
95*125*140 cm (W*D*H)
Weight
300 KG
What it Can Test
AC Load Bank, Batteries & DC Power Supply (High Voltage)
