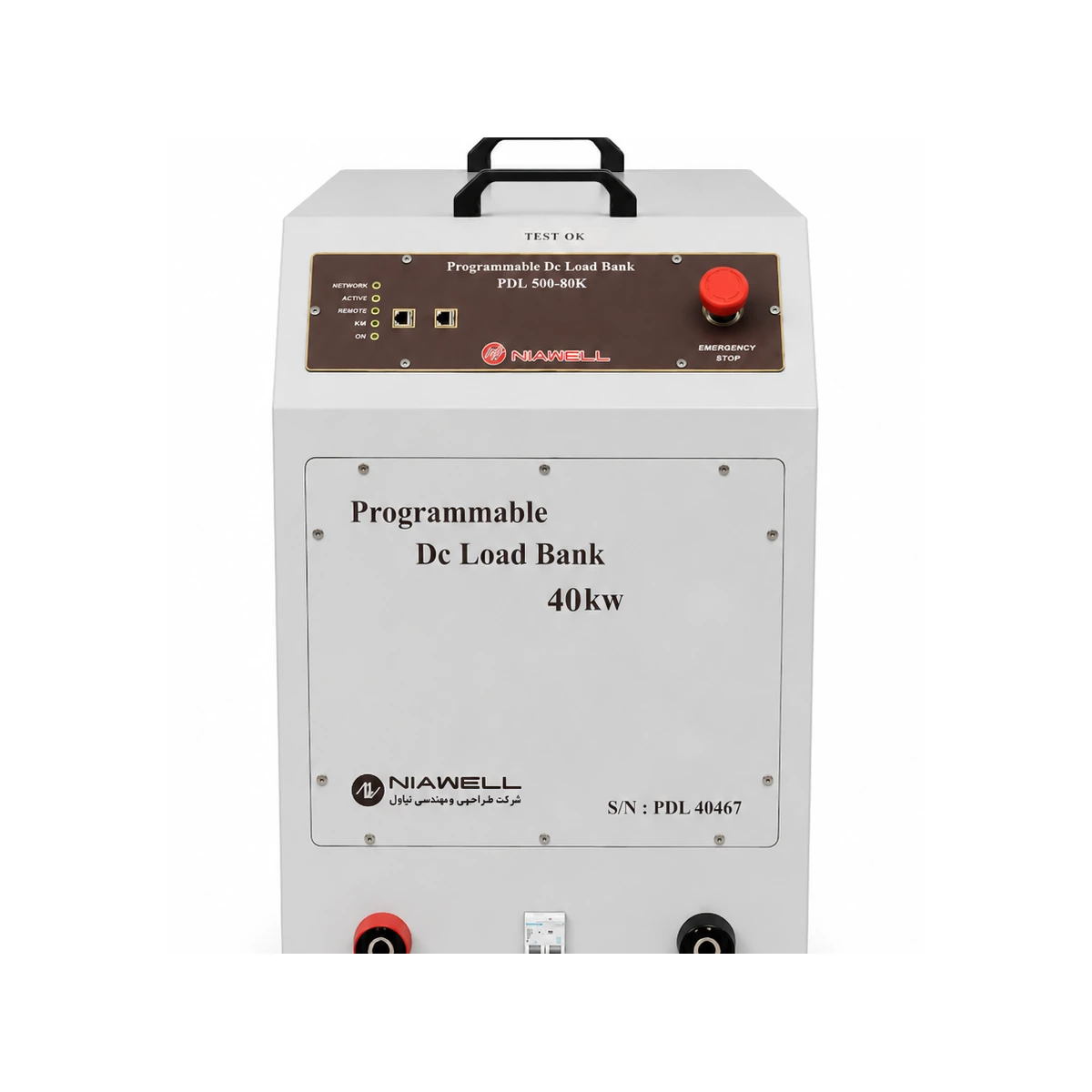

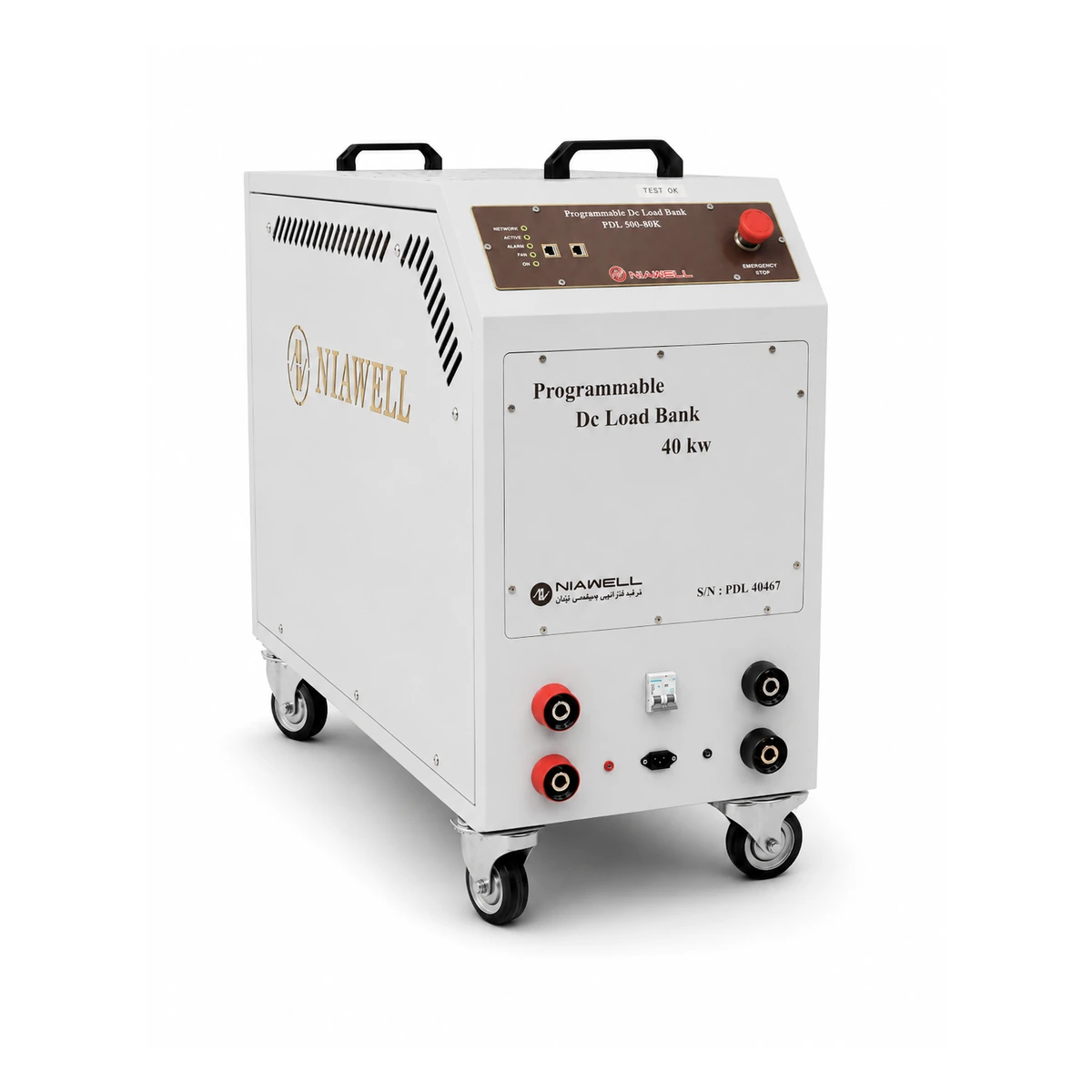

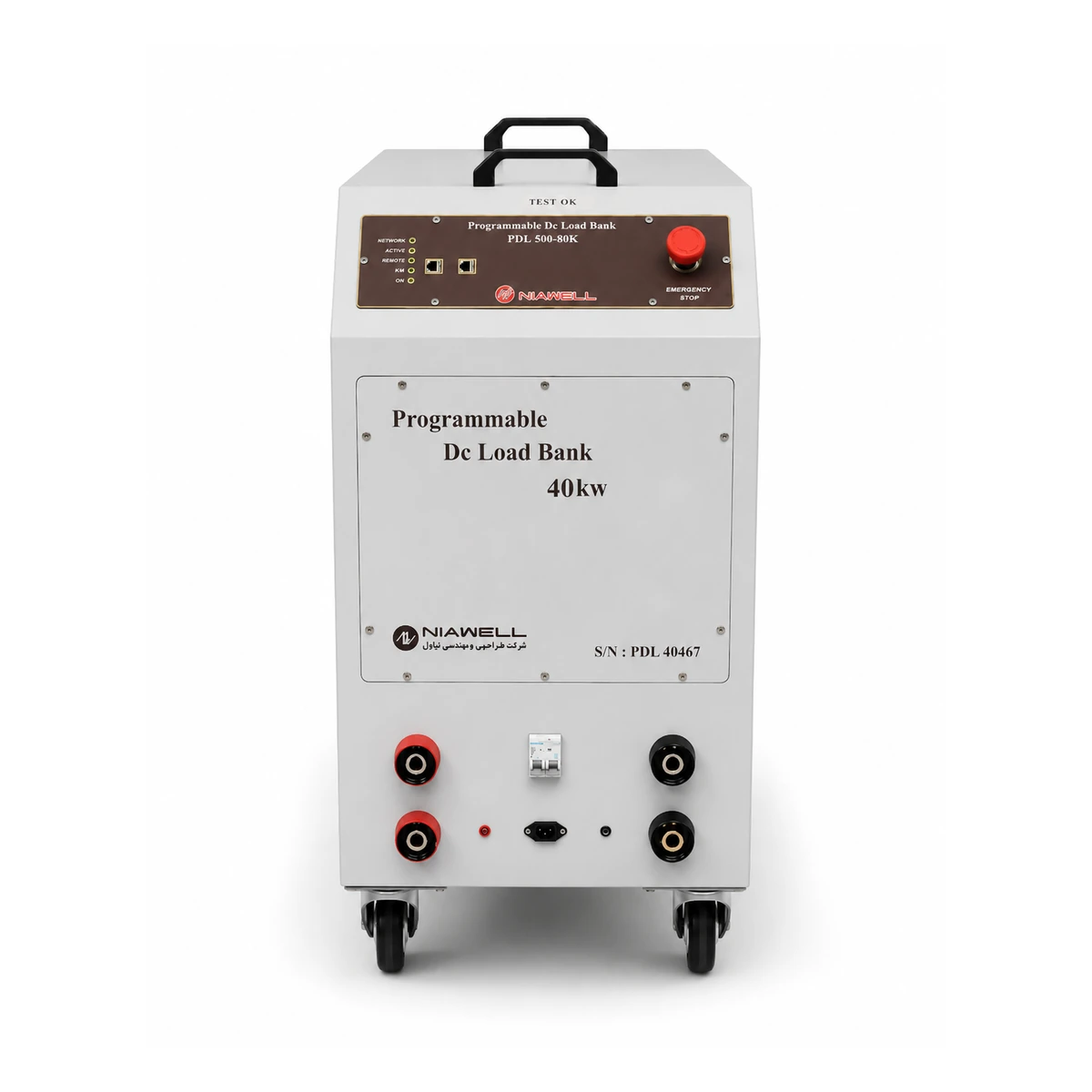

DC Load Bank PDL 500-40K — 40 kW

Name: DC Load Bank PDL 500-40K — 40 kW
Brand: Niawell
SKU: PDL 500-40K

Product seriesPDL Exact modelPDL 500-40K Rated power40 kW Installation & mobilityMobile / caster-mounted

Niawell PDL 500-40K 40 kW programmable DC load bank for battery and DC power-supply testing.

Choose the device model

Every option loads its own exact specifications.

Industrial engineering Custom configurations Engineering support

OVERVIEW

Niawell PDL 500-40K 40 kW programmable DC load bank for battery and DC power-supply testing.

TECHNICAL DATA

The data below comes directly from this exact model record and is never substituted with another power rating.

Specification	PDL 500-80K 80 kW · 500 V	PDL 500-40K 40 kW · 500 V
Model	PDL 500-80K	PDL 500-40K
Load Type	Programmable DC Load Bank	Programmable DC Load Bank
Rated Power	80 kW	40 kW
Input Voltage Range	10–500 VDC	10–500 VDC
Operating Modes	Constant current, constant power and constant resistance	Constant current, constant power and constant resistance
Reverse Polarity Protection	Yes	Yes
Cooling	Forced-air cooling	Forced-air cooling
Control System	CSU supervisory control unit	CSU supervisory control unit
Auxiliary Supply	220 VAC, 50 Hz	220 VAC, 50 Hz
Dimensions (W × L × H)	46 × 95 × 75 cm	35 × 78 × 50 cm
Weight	85 kg	55 kg
Power Switching	IGBT and MOSFET	IGBT and MOSFET
Operating Temperature	0–50 °C, indoor use	0–50 °C, indoor use
Applications	Battery discharge testing and DC power-supply testing	Battery discharge testing and DC power-supply testing

PDL

40 kW · 500 V
